WixLi Zhaga

WixLi is a standardized wireless solution dedicated to street lighting management which is based on few kinds of equipments (nodes controller and gateway). A web application software allows remote programming and supervision. WixLi-Zhaga controller can be fitted to a luminaire through Zhaga socket (according to book 18 – Zhaga consortium).

zhaga-logo

Zhaga is an industry-wide consortium aiming to standardize specifications for interfaces between LED luminaires and light engines. The aim is to permit interchangeability between products made by different manufacturers. Zhaga defines test procedures for luminaires and LED light engines so that the luminaire will accept the LED engine.

How it works

WixLi-Zhaga controller can be fitted to a luminaire through Zhaga socket (according to book 18 – Zhaga consortium). Light level can be adjusted trough DALI interface, a controller can managed until five DALI drivers according to differents time schedule and agendas. WixLi-Zhaga uses wireless ZigBee (IEEE 802.15.4) mesh network to allow communication between luminaires.



The controller provides a sensor input which is compatible with a dry contacts of any kinds of sensors (presence, movement or traffic, detectors…) to adapt the light levels on demand on a group of luminaires. WixLi-Zhaga is compatible any drivers/ballast, compatible with Zhaga specification, able to provide electrical measurements (P,U,I, power factor), energy consumption (kWh) and others electrical parameters.

  • Lights groups

    Lights groups

  • Energy consumption measurements

    Energy consumption measurements

  • Time Schedule program

    Time Schedule program

  • Wireless real time remote control

    Wireless real time remote control

  • Diagnostic and report

    Diagnostic and report

  • Smart city platform

    Smart city platform

  • Sensor management

    Sensor management

  • Light dimming

    Light dimming

Technical characteristics

Zhaga-socket

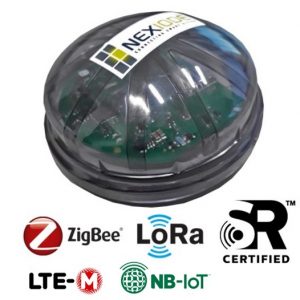

WixLi Zhaga avec prise Zhaga standard

Normative rules :

  • EN301489
  • EN61000-4-5 (until 6kV) EN61347-2-11 :2001
  • EN300328
  • EN301489-1 & EN301489-3
  • EN60950-1
  • EN62479

Power supply :

  • Input DC 24V nominal (provided by driver)
  • Standby Power consumption < 1W

Communication :

  • Wireless mesh ZigBee protocoI IEEE802.15.4
  • Frequency band 2.4GHz ( TX dBm / sensibility RX -100dBm)
  • Radio range : until 250 meters (free field condition)

Drivers / ballast control :

  • DALI interface for dimming according to IEC62386
  • Electrical measurements P, U, I, kWh, power factor (cos ɸ)
    (measured by driver SR)
  • Load capacity until 6 drivers DALI with independant schedule activity

Features :

  • Sensor input (one logical input
  • Internal GPS for automatic location and time synchronization
  • OTA update (over the air).
  • Fail safe mode (automatic light ON in case of default)
  • CLO (Control Light Output) in option
  • LEDs indicator : power supply (red) / radio (green)

Mechanical :

  • Diameter 80mm x H 35mm
  • Zhaga socket according to book 18
  • Translucent or custom design

Operatings condition :

  • Temperature : -30 °C / +80 °C
  • Protection class : IP66

Installation

Wixli-Zhaga can be fitted on the luminaire through Zhaga interface (book 18-Consortium Zhaga).

  • Plug and lock fixation
  • Wireless mesh network
  • DALI interface
  • GPS automatic positionning
  • Energy consumption and diagnostic
